MiniProf Brake

Home > Solutions > MiniProf > Brake

Accurately measure wear parameters, hollowing and thickness of any rail vehicle brake disc with the MiniProf Brake instrument. The full contact magnetic point ensures measurements are correct in any instance, by seamlessly cutting through dirt, oil, water, white frost and more.

What does it measure?

  • Brake wear parameters
  • Brake hollowing
  • Brake thickness

Calculate residuals and areas instantly with the included Envision software for easy comparison. Data can then be exported and used for further analysis.

There are two ways in which the MiniProf Brake can be mounted. One way is by mounting the instrument magnetically to the vertical part of the wheel. By mounting onto the backside of the flange or on the outer side, it uses these parts of the wheel as reference points for measurement. The second way to mount the MiniProf Brake is by magnetically attaching the unit to the outer diameter of the brake disc with magnetic rollers. The rollers operate by aligning with the wear marker on the disc which then acts as the reference point for measurements.

Accuracy is better than ±11 µm with a repeatability of ±2.5 µm.

CoMech Metrology Ltd is the first choice for precision and performance

MiniProf Rail

For conducting cross-sectional rail profile measurements and rail wear

MiniProf Wheel

Calculate cross-sectional wheel profile measurements for analysing wheel wear

MiniProf Lightrail Wheel

Calculate cross-sectional wheel profile measurements on tram wheels

MiniProf Wheel 400

Cross-sectional wheel measurements with an extended 400mm backplate

MiniProf Brake

Measure wear parameters, hollowing & thickness of any rail vehicle brake disc

MiniProf Twinhead

Accurately measure the left or right profiles of rolling stocks & tracks
blank

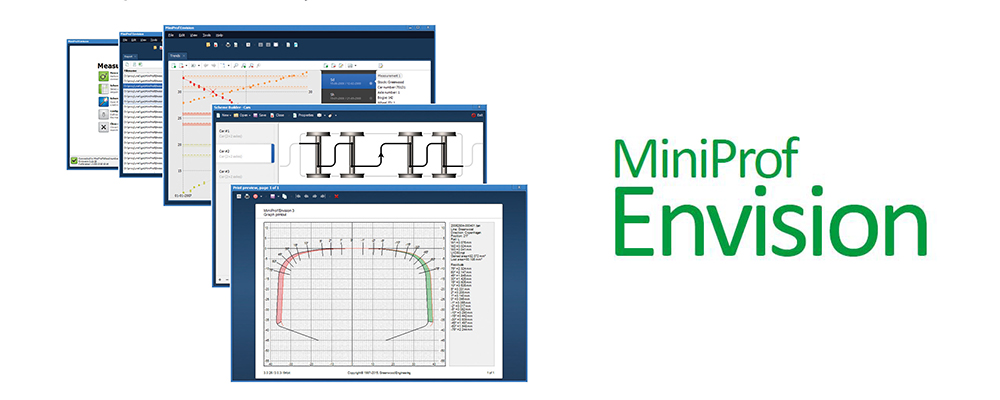

Each MiniProf instrument provided by CoMech in the UK and Ireland comes supplied with the innovative and user-friendly Envision software package. The software can be customised to suit any user’s needs for performing simple tests, alongside in-depth analysis at any given moment. Includes functions for trending, measurement schemes, creating templates and critical highlighting.

Learn More
