CoMech are responsible for the sales, calibration and maintenance of all MiniProf profile measuring instruments for the UK and Ireland. The MiniProf units are becoming world-renowned with thousands of users in over 50 countries.

What are the MiniProf Units?

The MiniProf family from Greenwood Engineering includes the Rail, Wheel, Lightrail Wheel, Brake, Twinhead, Switch & Crossings and Wheel 400 measuring devices. Each unit features a full-contact, knife-shaped contact point for seamlessly cutting through layers of dirt, grease, frost and leaves, making them suitable for use in virtually any working environment.

Made from lightweight and ultra-strong titanium, the MiniProf units operate with a small magnetic measuring wheel and rotating high-resolution optical encoders. The combination of Bluetooth connectivity and professional Envision software gives the opportunity to wirelessly take a vast amount of measurements on Android smartphones, tablets and PCs, thus minimising risk while maximising efficiency.

Each new MiniProf device comes complete with a sturdy transport case that is waterproof, dustproof and impact resistant.

Key Features

Accuracy is ensured due to the full contact point on all instruments. An impressive 20-30.000 individual points are collected in one simple swoop of the magnetic wheel. In addition, these measurements are collected in less than five seconds with an accuracy range of 9-11µm. The great scope of measurement is made possible with the MiniProf Envision software, which is suitable for use with an Android smartphone, tablet or PC.

All the instruments have an operating temperature of -15°C to +35°C with a battery life of 10 hours or 1,000 Bluetooth measurements. This can be extended even further when they are connected via USB.

The MiniProf range has been specifically made for the quality control, maintenance and safety regulation of rail tracks, brakes and wheels. The easy to use instruments are perfect for using within rail depots and other places around the world.

Discover MiniProf

blank

The MiniProf BT system is an excellent full contact measurement system with Bluetooth connection for fast, reliable and extremely high-quality profile measurements. Combined with a user-friendly and flexible software package which can easily be configured from basic use to in-depth post-measurement analysis, MiniProf BT can be used for numerous purposes on all types of wheel, rail and brake profiles. It enables the user to make critical decisions in purchasing, maintenance, quality and safety departments etc. and represents a great platform for research and development all over the world.

CoMech Metrology Ltd is the first choice for precision and performance

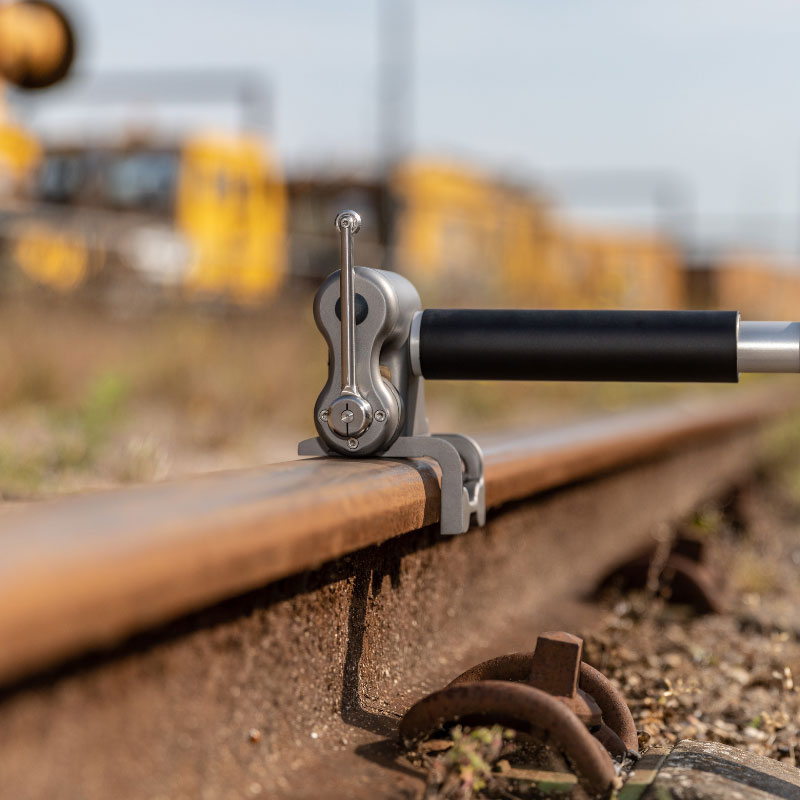

MiniProf Rail

For conducting cross-sectional rail profile measurements and rail wear

MiniProf Wheel

Calculate cross-sectional wheel profile measurements for analysing wheel wear

MiniProf Lightrail Wheel

Calculate cross-sectional wheel profile measurements on tram wheels

MiniProf Wheel 400

Cross-sectional wheel measurements with an extended 400mm backplate

MiniProf Brake

Measure wear parameters, hollowing & thickness of any rail vehicle brake disc

MiniProf Twinhead

Accurately measure the left or right profiles of rolling stocks & tracks
blank

Each MiniProf instrument provided by CoMech in the UK and Ireland comes supplied with the innovative and user-friendly Envision software package. The software can be customised to suit any user’s needs for performing simple tests, alongside in-depth analysis at any given moment. Includes functions for trending, measurement schemes, creating templates and critical highlighting.
